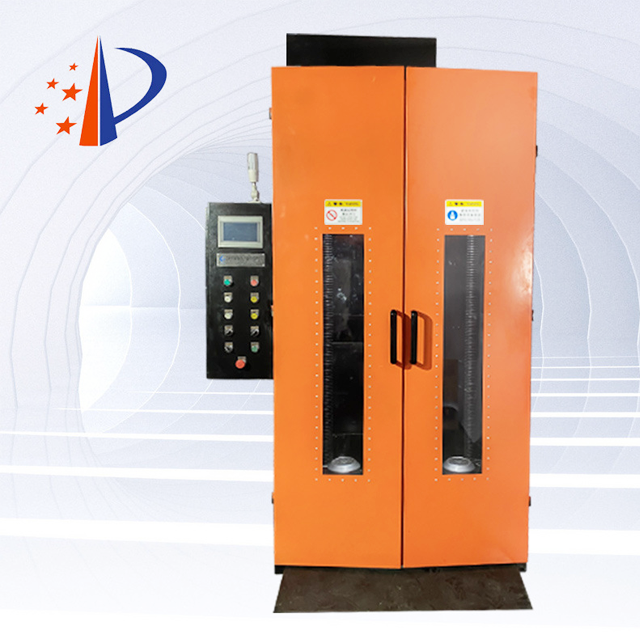

Vertical Steel Cylinder Rust Removal Machine

Customized processing: Yes
Brand: Not specified
Model: ZN03S
Dimensions: 2000 × 1200 (mm)
Weight: 1 (t)

Quantity:
Availability:





Inquire Add to Basket

Dongguan Zhuona Automation Equipment Technology Co., Ltd. was established in 2010. The company is committed to the design, manufacturing, sales and service of industrial automation intelligent equipment, and tailor-made a complete set of automation intelligent equipment and production solutions for customers. The company has won unanimous recognition and praise from customers with advanced technology and high-quality services, and was rated as a high-tech enterprise in Guangdong Province in 2017.

certificate

详情页图

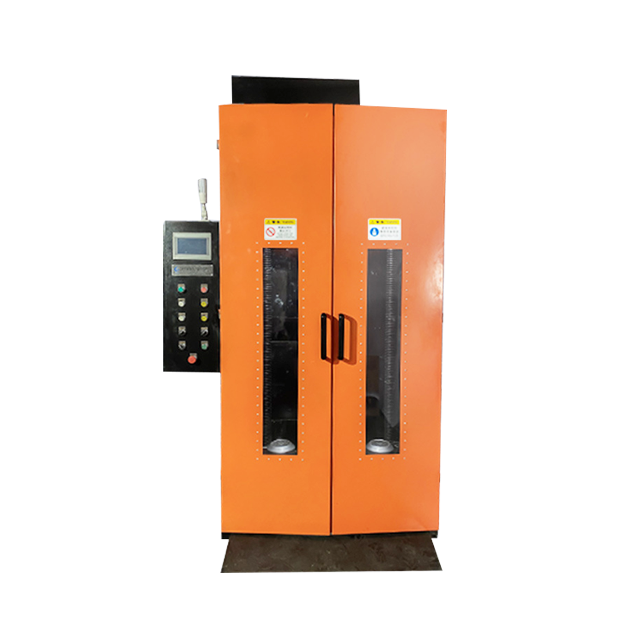

Vertical Steel Cylinder Rust Removal Machine

Related Products

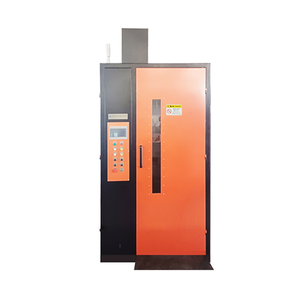

Vertical Steel Cylinder Spray Painting Machine

Special Gas Cylinder Polishing Machine

Acetylene Cylinder Bottom Rust Remover

Dimensions	Length * Width * Height 1450 * 1400 * 2600 Dust Collection System 2300 * 890 * 1750mm
Power	3PH, 380V, approximately 11KW
Compressed air	After drying, filtering, and stabilizing, the outlet pressure is greater than 6.0kg/cm ²
Applicable products	Multi specification steel cylinders for one machine universal use
Work efficiency	Adjustable speed, can set time according to bottle size and brushing requirements
Dust collection system	It can effectively absorb the dust generated during the separation process, and only needs to be cleaned regularly
Work steps	Single person bottle pushing into the workstation - door closing - start - rust removal completed - door opening and bottle pushing out
Advantage	Single person operation, vertical fully enclosed operation, equipped with dust collection system, can be used indoors The newly designed dust collection channel utilizes airflow vortices to separate dust, which is then subjected to secondary filtration Effectively filtering the paint and metal dust generated during the work process, avoiding the spread of dust in the workshop that may cause dust explosion hazards and employee occupational diseases, and can eliminate existing production safety hazards

Dimensions	Length * Width * Height 1450 * 1400 * 2600 Dust Collection System 2300 * 890 * 1750mm
Power	3PH, 380V, approximately 11KW
Compressed air	After drying, filtering, and stabilizing, the outlet pressure is greater than 6.0kg/cm ²
Applicable products	Multi specification steel cylinders for one machine universal use
Work efficiency	Adjustable speed, can set time according to bottle size and brushing requirements
Dust collection system	It can effectively absorb the dust generated during the separation process, and only needs to be cleaned regularly
Work steps	Single person bottle pushing into the workstation - door closing - start - rust removal completed - door opening and bottle pushing out
Advantage	Single person operation, vertical fully enclosed operation, equipped with dust collection system, can be used indoors The newly designed dust collection channel utilizes airflow vortices to separate dust, which is then subjected to secondary filtration Effectively filtering the paint and metal dust generated during the work process, avoiding the spread of dust in the workshop that may cause dust explosion hazards and employee occupational diseases, and can eliminate existing production safety hazards
