Soft Pack Battery Hot And Cold Press Machine

Quantity:
Availability:





Inquire Add to Basket

Dongguan Zhuona Automation Equipment Technology Co., Ltd. was established in 2010. The company is committed to the design, manufacturing, sales and service of industrial automation intelligent equipment, and tailor-made a complete set of automation intelligent equipment and production solutions for customers. The company has won unanimous recognition and praise from customers with advanced technology and high-quality services, and was rated as a high-tech enterprise in Guangdong Province in 2017.

certificate

详情页图

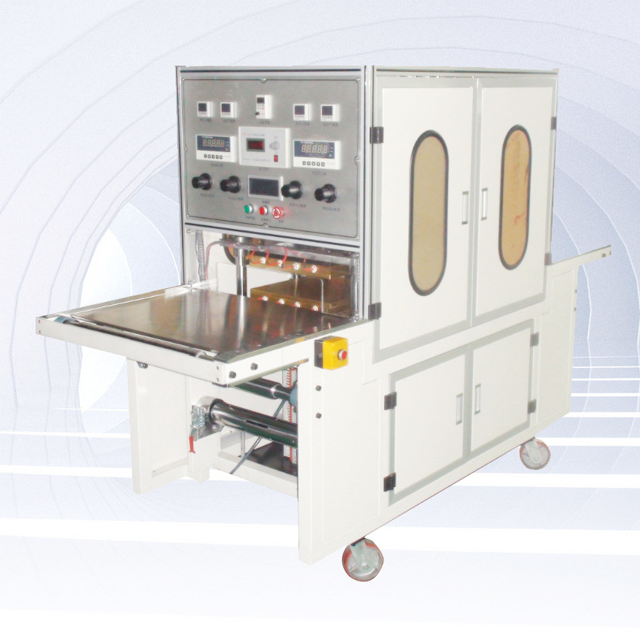

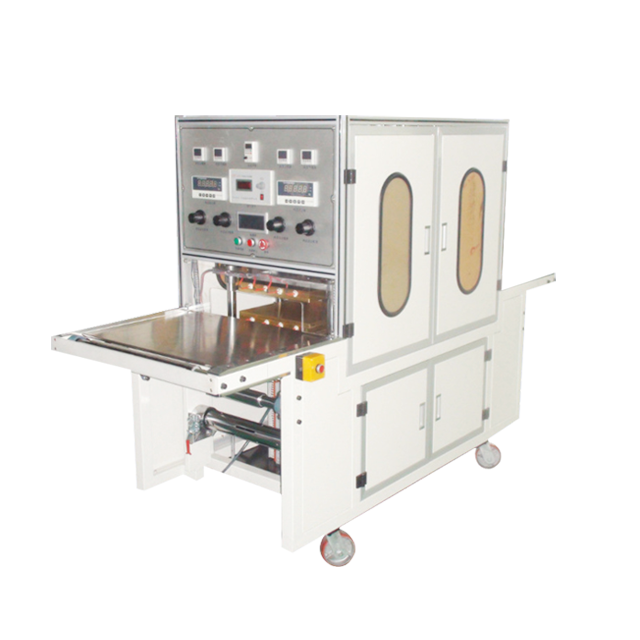

Soft Pack Battery Hot And Cold Press Machine

Related Products

Transfer Coating Machine

Lithium Battery Sorting Machine

Lithium Battery Injection Glove Box

Inert Gas Vacuum Glove Box

Horizontal Coating Machine

Extrusion Coating Machine

Continuous Slitting Machine

The company is committed to the design, manufacturing, sales and service of industrial automation intelligent equipment, and tailor-made a complete set of automation intelligent equipment and production solutions for customers.

Quick Links

Product Category

Contact Us

Phone: +86-136-99875592

Email: postmaster@zcoater.com

Add: Building B3, Zhanhong Technology Park, Qingshuiao Road, Jianshazhou, Wanjiang District, Dongguan City, Guangdong

- +86-136-99875592
- +86-135-10953125

Dimensions	Length * Width * Height 2300 * 1000 * 1900MM
Power	50HZ, 250V, 7.5KW
Compressed air	> 0.6MPa 20L/min (to be provided by the user)
Cooling water source	5-20 ° C cooling water (user provided water source, water tank, water pump, etc.)
Equipment capacity	100-600 EA/H (depending on holding time and battery size)
Work steps	Manual feeding → hot pressing → cold pressing → manual material collection flow operation
Advantage	Can preset cold and hot pressing temperatures, as well as holding time; Equipped with low and high temperature alarm functions; Pressure real-time display control and adjustable; Separable inflatable shaft structure, suitable for forklift loading and unloading with material rolls; Driven by a variable frequency reduction motor for winding and tension control of a magnetic powder brake for unwinding.

Dimensions	Length * Width * Height 2300 * 1000 * 1900MM
Power	50HZ, 250V, 7.5KW
Compressed air	> 0.6MPa 20L/min (to be provided by the user)
Cooling water source	5-20 ° C cooling water (user provided water source, water tank, water pump, etc.)
Equipment capacity	100-600 EA/H (depending on holding time and battery size)
Work steps	Manual feeding → hot pressing → cold pressing → manual material collection flow operation
Advantage	Can preset cold and hot pressing temperatures, as well as holding time; Equipped with low and high temperature alarm functions; Pressure real-time display control and adjustable; Separable inflatable shaft structure, suitable for forklift loading and unloading with material rolls; Driven by a variable frequency reduction motor for winding and tension control of a magnetic powder brake for unwinding.
